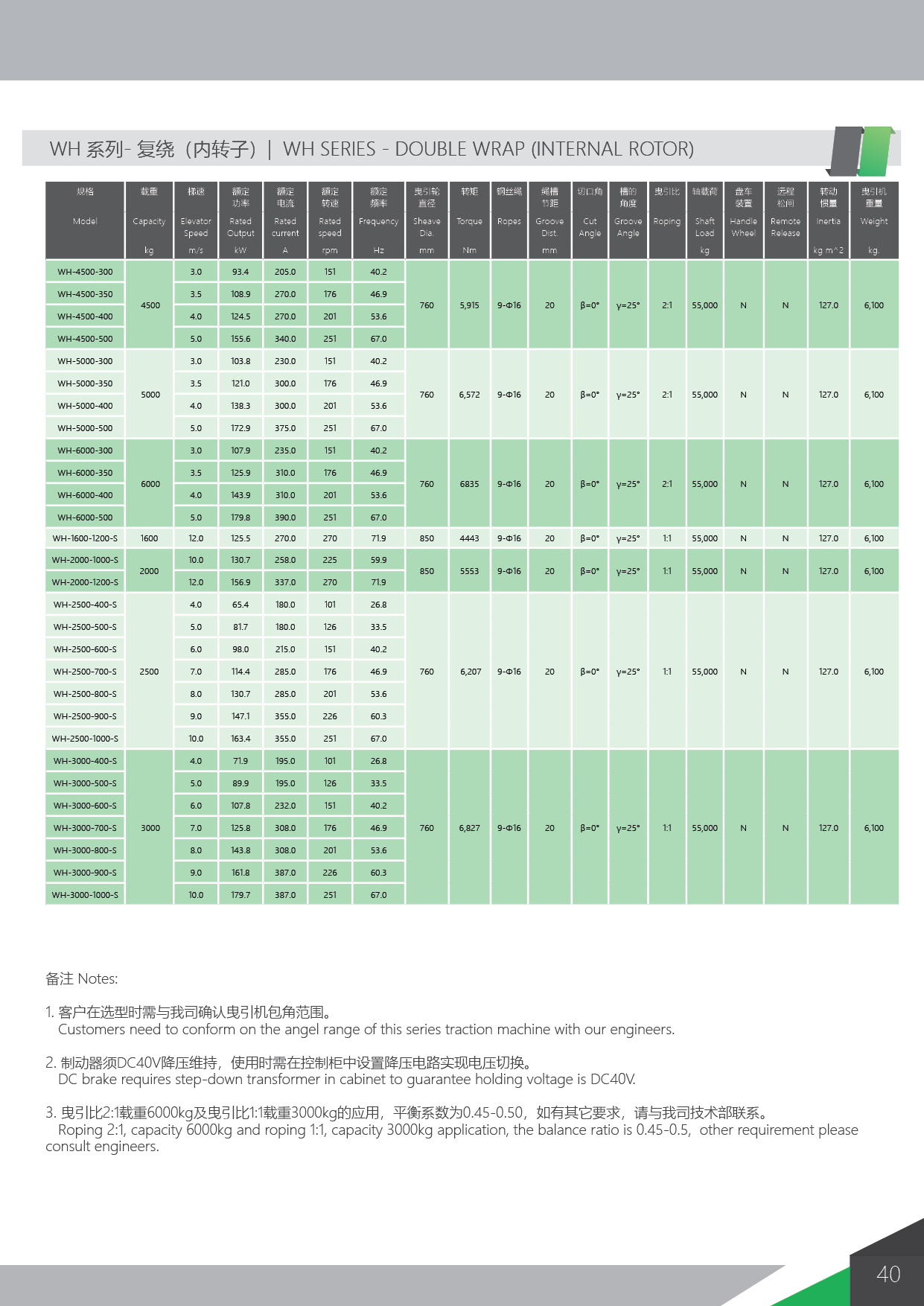

Notes:
1.Customers need to conform on the angel range of this series traction machine with our engineers.
2.DC brake requires step-down transformer in cabinet to guarantee holding voltage is DC40V.
3.Roping 2:1, capacity 6000kg and roping 1:1, capacity 3000kg application, the balance ratio is 0.45-0.5, other requirement please consult engineers.

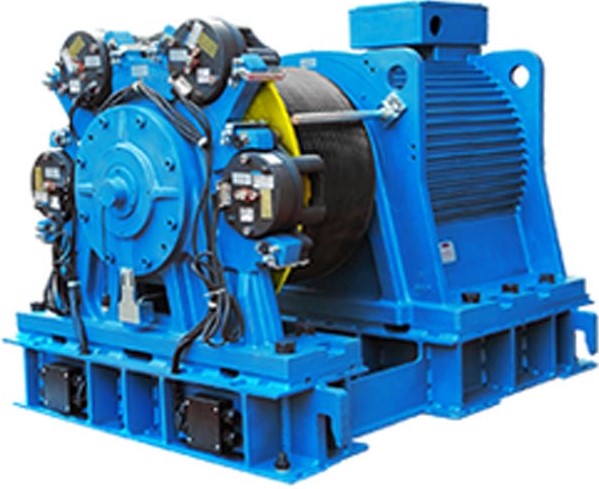

Capacity	1600kg-6000kg
Roping	2:1|1:1
Undercut	U
Poles	32
Foot Pad Flatness	<0.5mm
Protection Rating	IP40
Insulation Class	F
Duty Cycle	S5-40%
Motor Rated Voltage	AC380V
Brake	Disc
Picking/Holding Voltage	DC90V/DC40V



Full-wave rectification power source for DC brake.





KDS is an operating unit of Nidec Motor Corporation, it used to belong to Kinetek group. Which is a leader in the world economy by providing product and technology solutions that exceed the expectations of our customers. KDS holds market leading positions in the electric vehicle, elevator/escalator, commercial floor care, material handling, golf and utility vehicle, wind mill, aerial work platform and medical market segments.



KDS provides Nidec with a strong Asia base for the design, manufacturing and sales of products for domestic and international markets. Located in Foshan City, Guangdong province, PRC, KDS manufactures products for electric vehicle, escalator, material handling and other industries.

KDS is dedicating to be the best in the industry, and provide excellent service and products to global customers.
