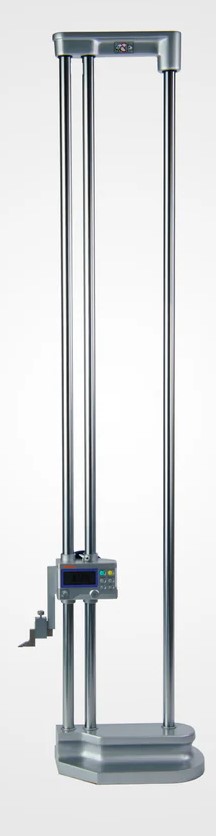

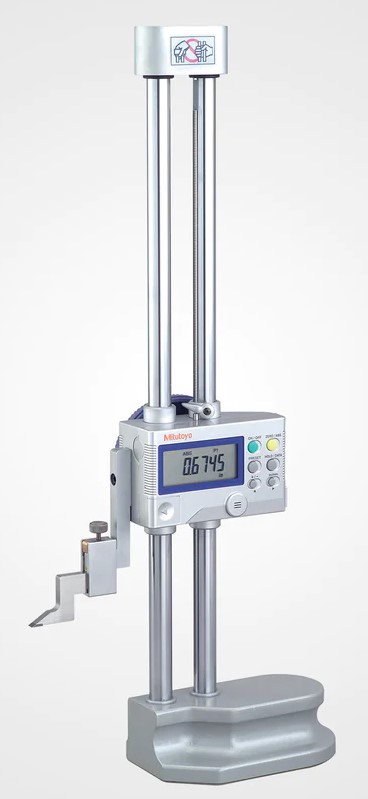

Digimatic Height Gage (Standard Type)

image  image

Size: 12in / 300mm  -  $3,975.00 + VAT

Size: 18in / 450mm  -  $4,551.00 + VAT

Size: 24in / 600mm  -  $4,945.00 + VAT

Size: 40in / 1000mm-  $7,989.00 + VAT

Digimatic Height Gage (Standard Type)

Product Details

Easy-to-use standard type

Carbide-tipped scriber is provided

Double-column structure ensures high measuring accuracy

Coarse/fine feed switching

Two preset reference heights


Technical Data

Resolution: 0.01mm or .0005"/0.01mm

Display: LCD, 7-digit character height 11mm

Max. response speed: 500mm/s

Battery: SR44(1pc.)

Battery life: Approx. 2000 hours under normal use

Switchable resolution (.0005 In/.0002 In/0.01mm/0.005mm)

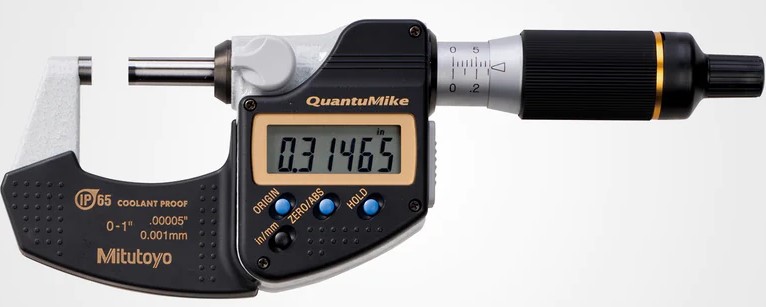

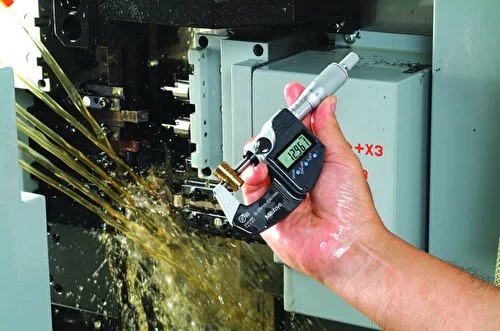

IP65 QuantuMike Digimatic Outside Micrometer



Size: 0-1in/0-25.4mm    -    $1,431.30 + VAT

Size: 1-2in/25.4-50.8mm  - $1,470.75 + VAT

Size: 2-3in/50.8-76.2mm  - $1,524.90 + VAT

Size: 3-4in/76.2-101.6mm- $1,589.90 + VAT



Product Detail Specifics to the 3-4" No Output Variant

Faster measurement with 2mm per rev. instead of the standard 0.5

A patented ratchet thimble mechanism helps ensure repeatability

A function lock helps prevent error

Certificate of inspection is provided

With standard bar, except 0-25mm/0-1" model

Supplied in fitted plastic case


Technical Data

Dust/Water protection level: IP65

Accuracy: Refer to the list of specifications

Resolution: 0.001mm or .00005"/0.001mm

Flatness: 0.3µm/.000012"

Parallelism: 1µm/.00004" for models up to 50mm/2", 2µm/.00008" for models up to 100mm/4"

Measuring faces: Carbide tipped

Display: LCD

Battery: SR44 (1 pc.), 938882

Battery life: Approx. 1.2 years under normal use

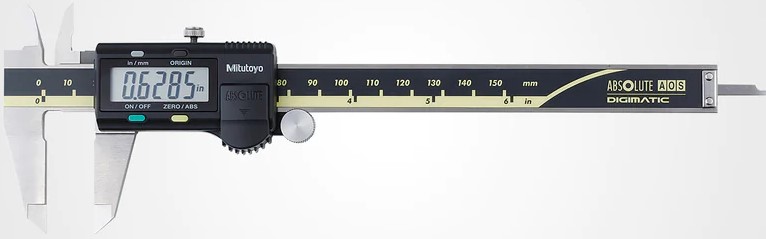

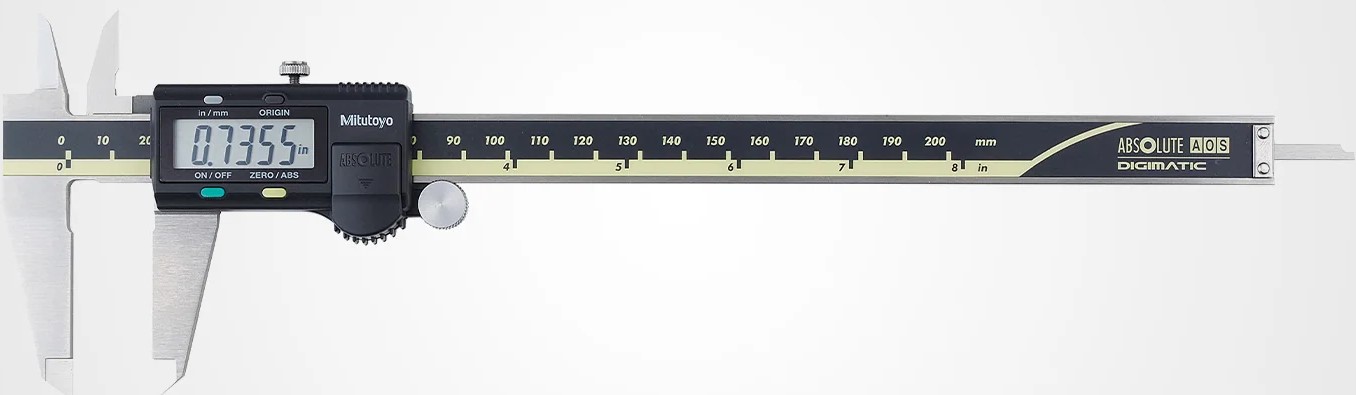

ABSOLUTE AOS Digimatic Caliper


Size: 0-6in / 150mm  -  $389.30 + VAT


Size: 0-8in / 200mm  -  $489.50 + VAT


Product Details

Large and clear LCD readout

ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point)

Data Hold Unit (959143) is optional

Carbide-tipped jaw type calipers are also available

With thumb roller. Except 500-500-10, 500-501-10, 500-502-10

Supplied in fitted plastic case. Except 1000mm / 40" supplied in wooden case


Technical Data

Resolution: 0.01mm or .0005"/0.01mm

Repeatability: 0.01mm / .0005"

Display: LCD

Length standard: ABSOLUTE electrostatic capacitance type linear encoder

Max. response speed: Unlimited

Battery: SR44 (1 pc.), 938882

Battery life: Approx. 3.5 years under normal use
