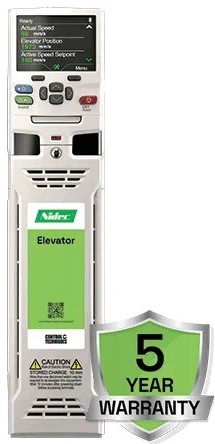

Elevator Drive E300

Specialist AC Drive
2.2 kW – 250 kW (3 - 400 hp)
200 V | 400 V | 575 V | 690 V

Dedicated drives for class-leading ride comfort

Control Techniques is a leading supplier of variable speed drive technology to the elevator industry, with over 3 million elevators in operation with our control equipment worldwide. Backed by our global network of Drive Centres we provide local expertise and support, along with quick delivery of robust and dependable products.

Our elevator drive solutions work for any size of building. Whether it’s a small residential building or a luxury high rise, new build or modernization projects, we make every step of the process as easy as possible from product selection to installation, setup and service.

Adding value at every stage of your project

	Freedom to design Broad power range, compact form factor Match any control interface, any protocol Work with any motor, any feedback device Multiple mounting options Dynamic braking and regen solutions Back-up power and rescue modes
	Effortless installation and commissioning Elevator specific menu structure Stationary autotune Pluggable drive terminals Robust cable management Parameter storage, cloning and security Keypad with backlit LCD display Virtual terminal for access through the lift controller PC tools for set-up and tuning
	Class-leading performance Creep-to-floor and Direct-to-floor operation Selectable start, run, stop gains Load cell compensation and start locking Start optimiser to overcome stiction Fast start mode Floor sensor correction Short floor landing operation
	Maintenance and diagnostics support Selectable status display parameters Diagnostics with timestamping Built-in data logger Normal Terminal Stopping Device support Low voltage rescue mode Blocked elevator car release Travel counter to help keep track the lifetime of plastic ropes

Features

Rapid set-up and adjustment

Simple and intuitive parameter adjustment via a bright back-lit LCD keypad

Set-up in familiar elevator language and units

Easy to use menu structure for quick and simple access to key adjustments

Top level menu; all your frequently needed functions in one location

Stationary autotune provides encoder phasing test without the need to de-rope the system or to open the motor brakes

Optimum ride comfort

Direct-to-floor positioning

Peak curve operation

High resolution multi-step S-ramp for start, run, slowdown and stopping

Ultra-fast current loop for vibration free motor control

Advanced brake control management, no rollback on starting without the need of load sensor

Silent operation

EN81-20 / EN81-50 TÜV certified STO enable input removes the need for both output motor contactors

High switching frequencies selectable up to 16 kHz

Variable speed cooling fan

Energy efficient

Standby sleep/wake mode, powers down unused circuitry during prolonged periods of standby

Easy connection to a range of regenerative modules

Flexible integration

Modbus RTU communications

Parallel I/O interface

+/- 10V analog reference control

Direct RS485 comms control

DCP3 and DCP4 communication support with optional System Integration module

CANopen communication support with optional System Integration module

Tile mount for low profile shaft mounting

24 Vdc backup

Simple UPS connection with load direction signal

Dynamic braking transistor fitted to all drives as standard

Robust

Active thermal management for tripless operation under extreme conditions

Advanced power circuit design using latest IGBT technology

Conformal coating for use in harsh environments

Phase loss detection on both input and output

Enhanced elevator data logger

User configurable, for example speed reference, speed feedback, current and I/O sequence can all be recorded for every car journey

Can be stored in the event of system fault

Available for offline viewing to aid system diagnostics

Software

Connect - intuitive commissioning software
Connect is our latest drive configuration tool for commissioning, optimising and monitoring drive/system performance.
Download
