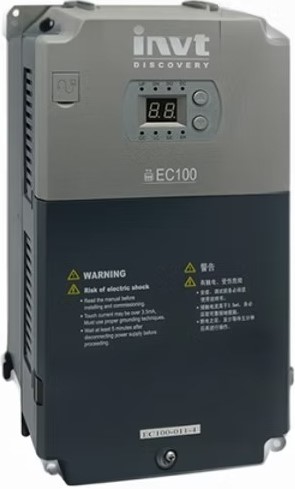

INVT - EC100 Akıllı Tümleşik Asansör Sürücüsü

INVT tarafından geliştirilen, yüksek performanslı bir hız kontrol cihazı olup, hem asenkron hem de senkron motorları kontrol edebilir. Yüksek performanslı ve hassas motor kontrolü, 32 bit DSP kontrollü işlemcisi ve gelişmiş vektör kontrol algoritması ile sağlanır. EC100 hız kontrol cihazları ;yüksek güvenilirlikli, her türlü çalışma ortamına uyum sağlayan, esnek uygulama ve istikrarlı performans sunar. EC100 Akıllı Entegre Asansör sürücüsü, asansör grup kontrolü, gelişmiş frekans vektör kontrolü, akıllı asansör kontrolü ve network haberleşmesi için geliştirilmiştir.

INVT-EC100-product-1.pdf INVT-EC100-product-2.pdf INVT-EC100-product-3.pdf

INVT-EC 100 Elevator Intelligent Integrated Machine_V2.5.pdf INVT-EC 160-Elevator Intelligent Integrated Machine_V1.2.pdf

Özellikler:

Power Range	7,5 ~ 30 kW
Power Supply	380V (- +15%)
Control Mode	PG Vector control
Frequency	50/60 Hz , Frequency Range, 47-63 Hz
Yüklenebilirlik	60s için 150% nominal akım, 10s için 180% nominal akım
Genel Özellikler	64 Durak kontrol kabiliyeti
	Maksimum çalışma hızı : 6 m/ s
	8 asansöre kadar grup kontrolü
	CAN-Bus Haberleşme
	Statik ve dinamik autoning
	AC 220 V tek faz UPD Düşük Voltaj acil durum modu, hafif yük yönünü arama .
	Başlangıç Torku: 0 Hz te Nominal torkun 180% 'i (VC)

Modeller:

3 AC 380V
ÜRÜN KODU	GÜÇ(kW)	AKIM(A)	BOYUTLAR(mm) Genişlik-Yükseklik-Derinlik
EC100-7R5-4	7,5	18,5	170x320x197
EC100-011-4	11	27	170x320x197
EC100-015-4	15	34	230x330x197
EC100-018-4	18,5	38	230x330x197
EC100-022-4	22	46	255x400x226
EC100-030-4	30	62	255x400x226

EC100 Group Control System for LIPARIS Hotel in Mersin City in TÜRKİYE.

Release time：2020-03-31

1.Project information: 31-03-2020

LIPARIS hotel stay in Mersin city in TÜRKİYE, which has both hotel and spa, and it will be open in June 2016. This hotel has 13 floors and requires 4 elevators as the transport tools for this high class building, 3 elevators group control and 1 elevator simplex control. Safety, high reliability, best performance and high efficiency are the most important requirement for the commercial building.

LIPARIS Hotel Building Appearance

2.ELEVATOR SYSTEM

In this project, there are totally 4 elevators which has been installed in the same machine room. All these elevators are for passengers. For increasing the transport efficiency, Group Control mode must be the best choice for the elevator control system of this project. According to the whole lift system design, 3 elevators use group control technology. The specifications as follow:

Item	Descriptions
Control Mode	3 Elevators Group Control
Capacity	750 kg, 10 Persons
Elevator Speed	2.0 m/s
Number of Stops	13

According to the specification of the elevators, we chose the right model as follow, which is based on the EC100 elevator integrated controller.

Specifications:

Item	Model	Qty	Descriptions
EC100 integrated controller	EC100-015-4	3	15kW, 380VAC, 34A
Communication board	EC-CTB	3	Car top control board
Group control board	MC-GCL	3	Group control board
Commanding board	EC-CCB	3	Car commanding board
Displaying board	LM21-070	3	LCD Displaying board for COP
Displaying board	DC-07C	39	LCD Displaying board for LOP
Handheld operator	EC-PAD	1	LCD handheld operator

For the good appearance, LCD display is needed for the LOP system. And arrival gong and arrival light system is useful in the group control project. For the in-car display, we are using the LM21 7inch 64 color TFT displays, which support the customized background photo and sounds.

LOP and COP

Elevator Controller is simple since it base on the EC100 integrated controller which combine the motor drive and the elevator controller. For the traction motor, gearless motor is more efficiently and high performance for the passenger elevators.

Elevator Controller Panel and Elevator Gearless Traction Machine.

EC100 integrated elevator controller provides the easy debugging way for the group control system setting. With the EC-PAD handheld operator connecting to the MC-GCL group control board, we can check the group control parameters and finish the debugging in a short time.

3.EC100 Group Control System

EC100 Group Control Diagram

EC100 elevator integrated controller provides 3 group CAN communications, including in-car CAN communication, hall landing CAN communication and group control communication. CAN communication is more reliable than other communication protocol, especially in the high building.

For the group control, EC100 can support at most 8 elevators. In the group control system, MC-GCL group control board must be added for each elevator system, which will be wired in same link with the CAN communication cables.

4.Conclusion

Group control is wildly use in the commercial building for increasing the transport efficiency. EC100 elevator integrated controller provides the advanced group control technology and makes the debugging to be simple and easy, which cause cutting the cost of the time and the device.
